Scripts on BlueStacks 5

How will this help?

With BlueStacks 5.2 and above, you can now enhance your gaming experience by creating intuitive scripts for various actions performed while playing.

This detailed article will guide you on how to use scripts effectively. It will explain:


Commands used for running scripts on BlueStacks

Scripts are sequences of actions (such as keystrokes, mouse clicks, delays, etc) that can be triggered by a specific key. It’s a powerful feature to extend the existing key mapping control. You can define any action sequence as you want and activate them using your own special key.

Commands available for scripts on BlueStacks:

Keyword Syntax Short Description
# # this is a comment Comments begin with #. Everything until the end of the line is considered a comment and is ignored.

A comment can be on a line by itself or can be placed at the end of a command on the same line.
keyDown keyDown key

e.g.
keyDown TAB
Key is pressed and is not released until the keyup command is encountered for the same key.

Mapping for the key is executed if one exists. Otherwise, the keyDown input is forwarded to android.
keyDown2 keyDown2 key

e.g.
keyDown2 TAB
Key is pressed and is not released until the keyUp is encountered for the same key.

Mapping is not executed and key down input is forwarded to android.
keyUp keyUp key

e.g.
keyup TAB
Key is released. Mapping is executed if one exists; otherwise, keyUp input is forwarded to android.
keyUp2 keyup2 key

e.g.
keyup2 TAB
Key is released. Mapping is not executed and keyUp input is forwarded to android.
mouseDown mouseDown x y

e.g.
mouseDown 44.0 55.5
The left button of the mouse is pressed at location x, y. All locations are in screen percentages so that the same script can work across different resolutions.
mouseUp mouseUp The left button of the mouse is released. No coordinates are required.
mouseMove mouseMove x y

e.g.
mouseMove 4.56 5.67
Mouse moves to new location x, y
touch touch x1 y1 x2 y2 x3 y3

e.g.
# 3 fingers
touch 4 5 6 7 8 9

# 3rd finger lifted
touch 4 5 6 7

# fingers 1 and 2 move
touch 5 6 7 8

# fingers 1 and 2 lifted
touch
Touch input with the current set of touchpoints specified. Series of touch commands can be used to create arbitrary multi-touch input.

Up to 16 touchpoints are supported. But keep in mind that other touchpoints from other controls are aggregated before sending to android.
text text “text”
text backspace 2
e.g.
text “hello world”
Send text input to android. This can be in any language. The format should be utf8.
mouseWheel mouseWheel x y d
mouseWheel 44.0 55.5 1
mouseWheel 44.0 55.5 -1
Send mousewheel event to keymapping which will convert it to zoom or scroll accordingly
wait wait msecs

e.g.
wait 24
Waits for the specified number of milliseconds before executing the next command.


Higher Level Primitives:

Keyword Syntax Short Description
onMouseMove onMouseMove

This provides finer control over execution of script.  Different sets of commands can be provided for executing when the mouse is moved.

Commands following the onMouseMove command are executed when the trigger key is pressed and the mouse cursor is moved

abort  abort


It aborts the execution of a script.

onRelease

onRelease


This provides finer control over the execution of the script. A different set of commands can be provided for executing when the trigger key is pressed and released.

All commands from the top of the script until the onRelease command are executed for as long as the trigger key is pressed.

Commands following the onRelease command are executed when the trigger key is released.



dTouch



onMouseMove

dTouch x+a y+b x+c y+d… x+u x+v



# take two touch points x+3 y x-3 y

dTouch x+3 y x-3 y

onRelease

abort

The dTouch command is specific to the mouse movement. Hence, it is necessary to use onMouseMove command at the start of the script.

dTouch can be used to make a touch gesture on-screen with offset to current mouse location x y. Multiple points may be specified to generate the touch point.

a,b,c,d are offsets of the touch points from the current mouse location x y.

onRelease abort command ensures that the script stops as soon as the trigger key is released.

tap tap x1 y1 x2 y2 … xn yn delay

This does a tap gesture. Single or multiple touchpoints can be specified. The touchpoint(s) are held for a specified delay. If the delay is not specified it is assumed to be 50msec.

Delay is specified in milliseconds. This is the amount of time the entire swipe gesture takes.

Up to 16 touchpoints are supported. But keep in mind that other touchpoints from other controls are aggregated before sending to android.

swipe swipe x1 y1 x2 y2 … xn yn delay

e.g.
# swipe 4,5 to 40,45
# take 100msecs
swipe 4 5 40 45 100
Do a swipe gesture. Multiple points may be specified which the swipe goes through.

Delay is specified in milliseconds. This is the amount of time the entire swipe gesture takes.
loop / loopEnd

loop n
.
.
loopEnd

onRelease

abort

Commands following loop command until loopEnd are executed n times.

If n is not specified, the loop continues indefinitely or until the script trigger key is released.

The onRelease abort command ensures that the script stops running when the trigger key is released.

enterShoot enterShoot Enter shooting mode used to play FPS games. If a Pan control does not exist in the current scheme this is ignored. If shooting mode is already enabled this has no effect.
exitShoot exitShoot Exit shooting mode. If a Pan control does not exist in the current scheme this is ignored. If shooting mode is disabled this is ignored.
toggleShoot toggleShoot Toggle shooting mode. If a Pan control does not exist in the current scheme this is ignored.


How can I create a script?

1. First, launch the game on BlueStacks for which you want to create scripts.


2. After the game launches, click on the "Game controls" icon from the Side Toolbar and select "Open advanced editor" from the dropdown menu.


3. To create a script, drag the script button and drop it on a functional area. For explanation purposes, let us drop it on the Bag button at the bottom left, as illustrated below.


4. Now, assign a key for this function. Here, the "Tab" key is assigned to initiate the command added as a script.


5. Click on the "<\>" icon under the script button to start adding the commands for this Script.


4. This will open the Script editor on the right side of your game screen.

When you right-click on a spot on the screen, the coordinates for that point will be shown in the script editor, as displayed below. Here, the right-click was done on the Bag button.


5. You can start adding scripting commands next to the coordinates in the Script editor, as shown below.

  • The command "tap" against the coordinates means that when we press Tab, it will tap once on the Bag button.
  • The command "exitShoot" against the coordinates means that when we press Tab, it will exit Shooting mode in the game.


6. After adding the commands, click on "Done".


7. On the next screen, click on "Save". Once the changes are saved, you can close the Controls Editor.


8. You can now see the changes reflect in the game.

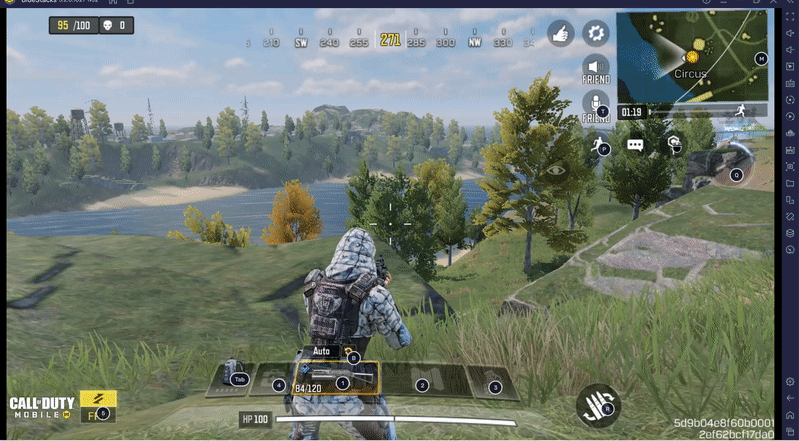

The illustration below shows the player is in Shooting mode. Upon pressing Tab, the Bag button is tapped and the player exits shooting mode.



Thank you for choosing BlueStacks. We hope you enjoy using it. If you have any further questions, please contact us at support@bluestacks.com. Happy Gaming!
